Product Description

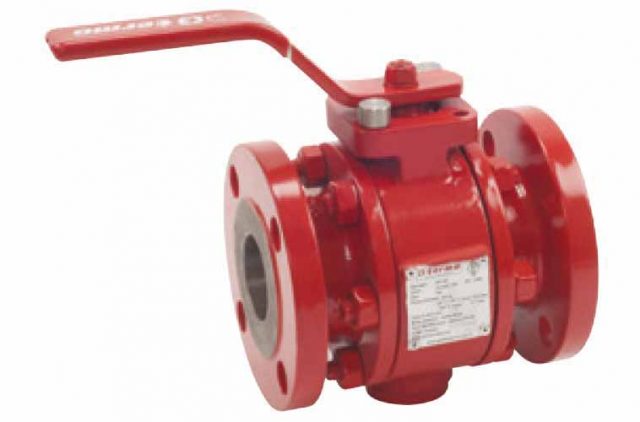

    BALL VALVE API – ANSI (TRUNNION)

    More Information

    PRODUCT TECHNICAL INFORMATION

    Operating Data
    Product CodeTBVV34ETBVV37E
    NOMINAL PRESSURECLASS 150CLASS 300
    DIMENSIONS2" - 12" (DN50-300)2" - 12" (DN50-300)
    CONNECTIONSANSI FLANGEDANSI FLANGED
    BODY MATERIALSTEEL (A216 WCB)STEEL (A216 WCB)
    WORKING PRESSURE MAX.20 BAR50 BAR
    WORKING TEMP. MAX.180 °C180 °C
    CONNECTION STANDARTANSI B16.5ANSI B16.5
    FACE TO FACE SIZEANSI B16.10 - API 6DANSI B16.10 - API 6D
    BODY DESIGNFB/RB - 3 PIECESFB/RB - 3 PIECES
    GASKET MATERIALPTFEPTFE
    BALL MATERIALSS 420SS 420
